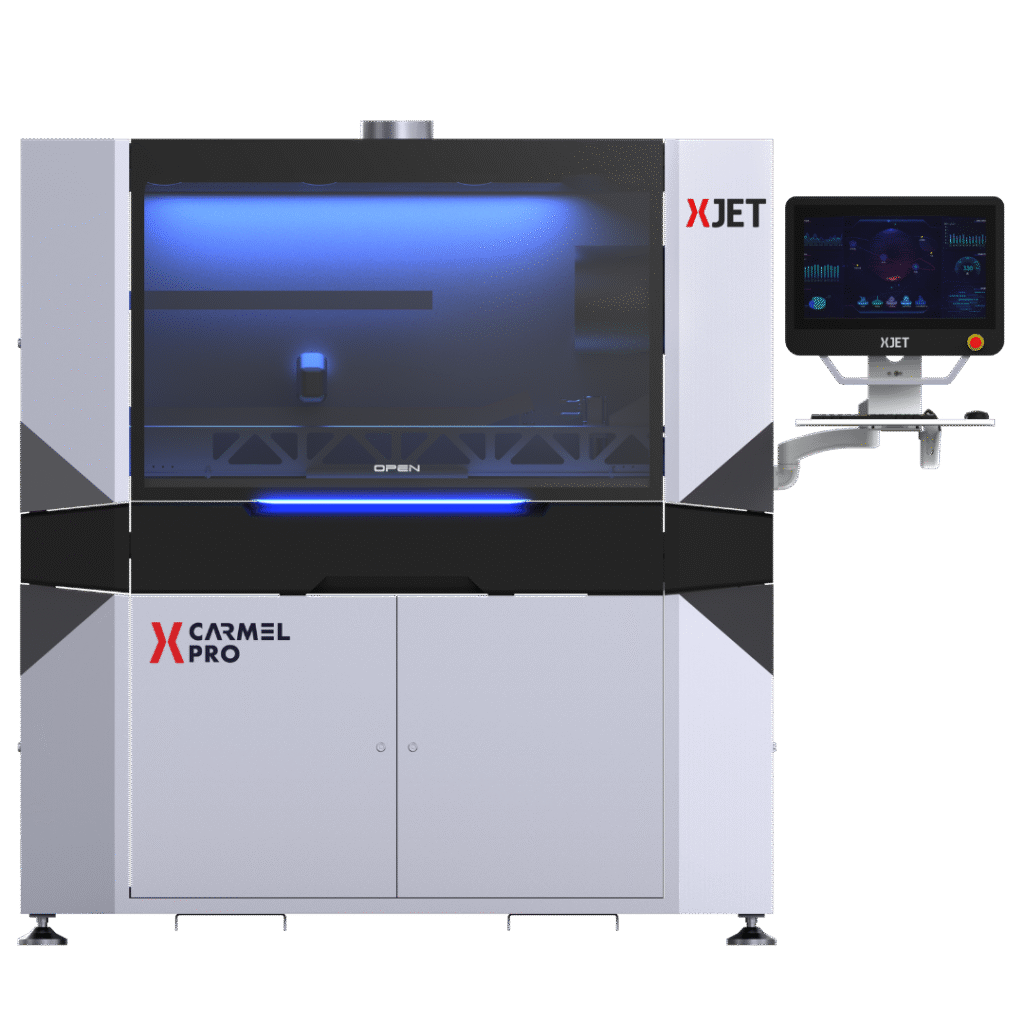

CARMEL PRO
A 4-channel multi-material platform that is compatible with all XJet metal and ceramic materials, for small-batch premium production
CARMEL PRO
The compact, multi-material platform that is compatible with all XJet metal and ceramic materials, for small-batch premium production
Breaking inkjet AM boundary
Democratizing Access to High-Value Metal and Ceramic Produdction
4-channel printhead configuration for multi-build material printing
60-70% cost of ownership than previous Carmel Models
Compact size for SMEs, research institutes or boutique manufacturing space
100% ink recirculation
Compatible with all XJet materials (including precious metals)
Automated production
Reduced Cost per Part
2X Tray Size
One Pass Printing Mode
Up to 2X Z-axis printing speed
Higher output per job
Reduced manpower and maintenance v.s. mainstream AM solutions
File to Part down to 48 Hours
Minimal job preparation
Up to 20 mins for inter-job cleaning
Easy tray loading and unloading
Minimal post-processing needed
Leading in Sustainability
100% ink circulation via new printhead technology
0 purge between jobs
A clean process in a non-toxic operational environment
Reduced energy consumption through shortened production process and time
Specifications
Recirculation advanced Inkjet technology
1400 cm² (217 in²) build tray – one of the industry’s largest – enables the simultaneous production of multiple identical or different parts
Simultaneous Model and Support printing
Extra thin layers <10Microns
High resolution material jetting printing
Operation
Handsfree, unattended operation
Fast turn between jobs
Easy tray loading and unloading
No loose powder – easy ink container loading
No laser or hazardous materials
Soluble support material for easy & manual-free support removal
Intuitive touch screen operation
High degree of software wizards support and automation
Output
Highly suitable for a wide range of creative ceramic AM applications in diverse industries, due its superior quality and geometric complexity
A patented inkjet technology enables the production of ceramic AM parts of the highest detailing, finish and accuracy
High productivity & repeatability enabling solutions from prototyping to full fledge manufacturing.
Addressing a broad range of applications from industries such as semiconductors, biotechnology, healthcare, aerospace, automotive, telecom and more
System Specifications
Part Quality
The information is provided for general information purposes only, and is subject to change at any time and to XJet terms and conditions.
-
Build area (w/d) on removable build tray
350 x 140 mm / 13.7 x 5.5 in
-
Layer Thickness
~8±2 microns
-
Building Speed
Up to 1.4mm height per hour
-
Dimensions (w/h/d)
175 x 190 x 85 cm / 69 x 75 x 33 in
-
Weight
700 kg / 1,543 lb
-
Electrical power
EU: 400 VAC; 3 phases; 3 x 32 A; 50/60 [Hz]
-
Air pressure
7 Bars pressure, peak flow of 1000 Liters/Min
-
Operating temperature
18°- 25°C; 64°- 77°F
-
Regulations compliance
CE; FCC
System Specifications
Part Quality
The information is provided for general information purposes only, and is subject to change at any time and to XJet terms and conditions.
-
Build area (w/d/h) on removable build tray
500 x 280 mm / 19.7 x 11 in
-
Layer Thickness
7-10 microns
-
Building Speed
>1.0 mm height per hour
-
Dimensions (w/h/d)
310 x 212 x 185 cm / 122 x 84 x 73 in
-
Weight
3 tons / 6,614 lb
-
Electrical power
EU: 400 VAC; 3-Phases; 3 x 63 A; 50/60 Hz
US: ≥208 VAC; 3-phases; 3 x 63 A; 50/60 [Hz] -
Operating temperature
18°- 25°C; 64°- 77°F
-
Regulations compliance
CE; FCC
